ปั้มลมสำหรับเครื่องตัดเลเซอร์ : Air Compressor for Laser

ปั้มลมสำหรับเครื่องตัดเลเซอร์ : Air Compressor for Laser

Air Compressor for Laser : ปั้มลมสำหรับเครื่องตัดเลเซอร์ 16bar

Features

High Pressure Air Compressor for Laser Cutting

A high-pressure air compressor for laser cutting is a device that generates compressed air at high pressure that can be used to power a laser cutting machine. It is an essential piece of equipment for any workshop or factory that operates a laser cutting machine. The high-pressure air compressor provides a steady stream of compressed air to the laser cutting machine, allowing it to cut through materials quickly and accurately. It also helps to remove debris and dust from the cutting area, ensuring a clean, efficient cut.
These compressors are specially designed to handle the high demands of laser cutting applications and are typically built with heavy-duty components and advanced features like automatic shut-off, filtration systems, and variable pressure control.
Overall, a high-pressure air compressor for laser cutting is a reliable and efficient solution that helps to maximize the performance of your laser cutting machine and streamline your production process.

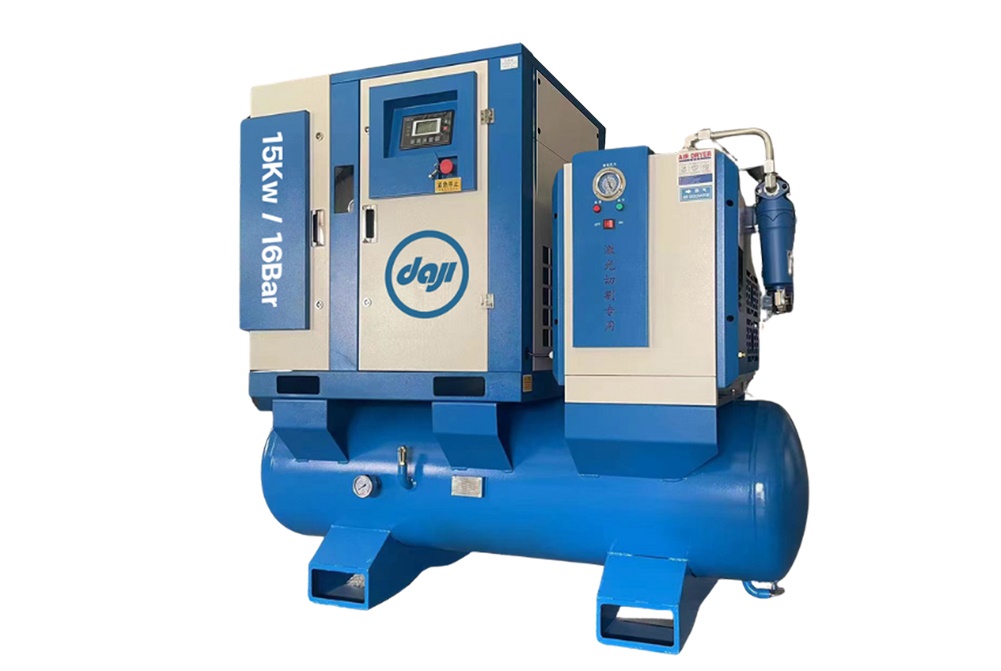

Specification : Air Compressor

15kW/16bar

Cooling method

Air cooling

Maximum exhaust pressure

1.6Mpa

Volume flow

1.2m³/min
Exhaust gas temperature Ambient temperature±15℃

Transfer method

Direct connection drive

Noise

65~70±2db

Oil content at gas

≤3ppm

Oil content at the end

0.003ppm

Dust content at the end

0.01um

Motor Power

15kw

Voltage/frequency

380V/50Hz

Start method

Star-delta (frequency conversion) start

Rated speed

2950rpm

Insulation class

F

Exhaust pipe diameter

G1

Physical dimension(mm)

1950*700*1680

Weight(kg)

590
