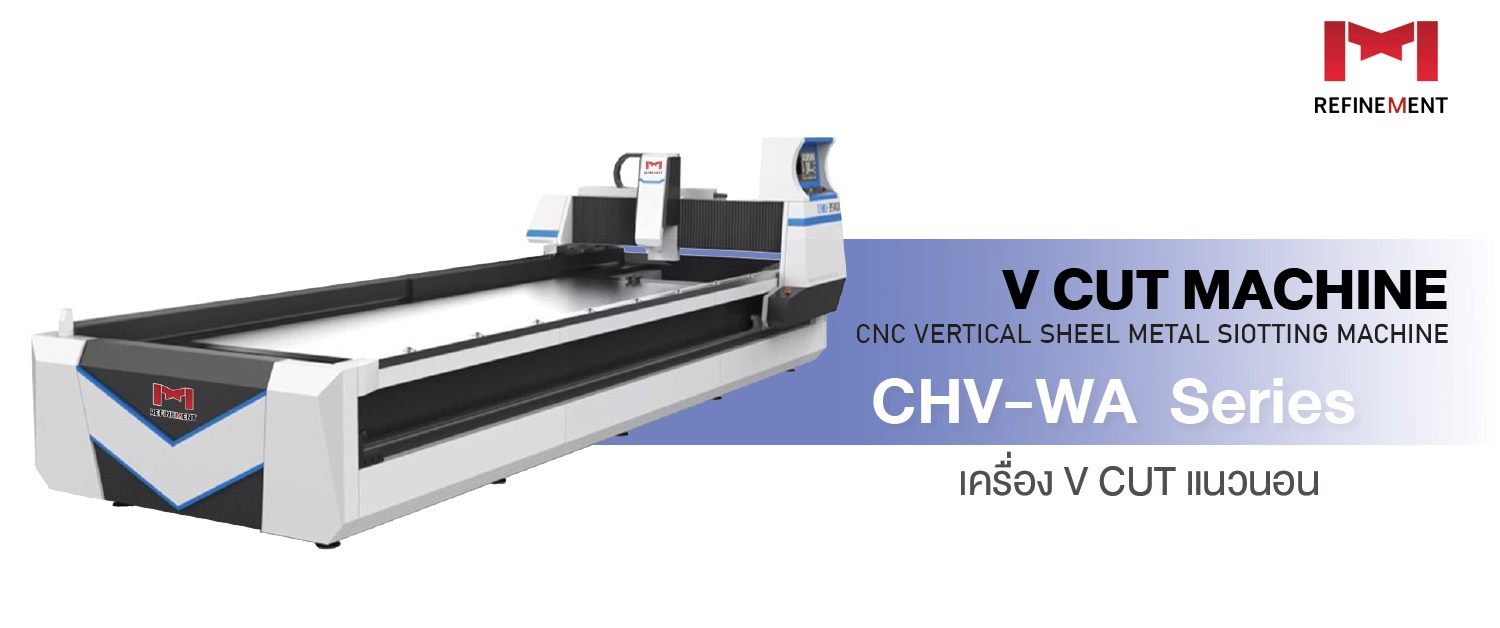

CNC Vertical sheel metal siotting machine เครื่องไสร่องวี (V-CUT) แนวนอน 2ทาง | CHV-WA SERIES

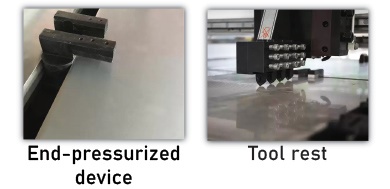

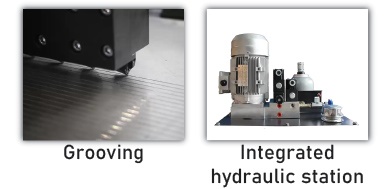

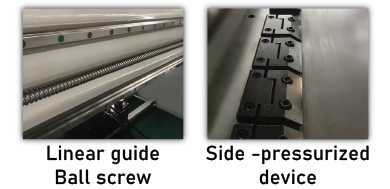

Features - Adopt all steel welded structure,the residual stress is eliminated by tempering furnace, and the machine is with high mechanical strength and good rigidity. - Adopt hydraulic pressurized system,which largely improves the processing accuracy. - X axis is driven by AC motor.Y1 axis / Y2 axis / Z axis are driven by servo motor. Higher performance higher, efficiency,save energy Internet. - Integrated hydraulic station imported brand hydraulic valve parts compact structure and low failure rate. - Manually lubrication system reduces mechanical friction. - Foot pedal with emergency stop. - High efficiency chip blowing device to avoid workpiece damaged. - Less power consumption. - Low noise & smooth operation gives higher efficiency of operator. - Water cooling system cooling blades reduced wear increase using life. - The moving system adopts ball screw and linear guide. - The grooving structure of four blades improve the working efficiency. - Electric components are all with famous brand.
